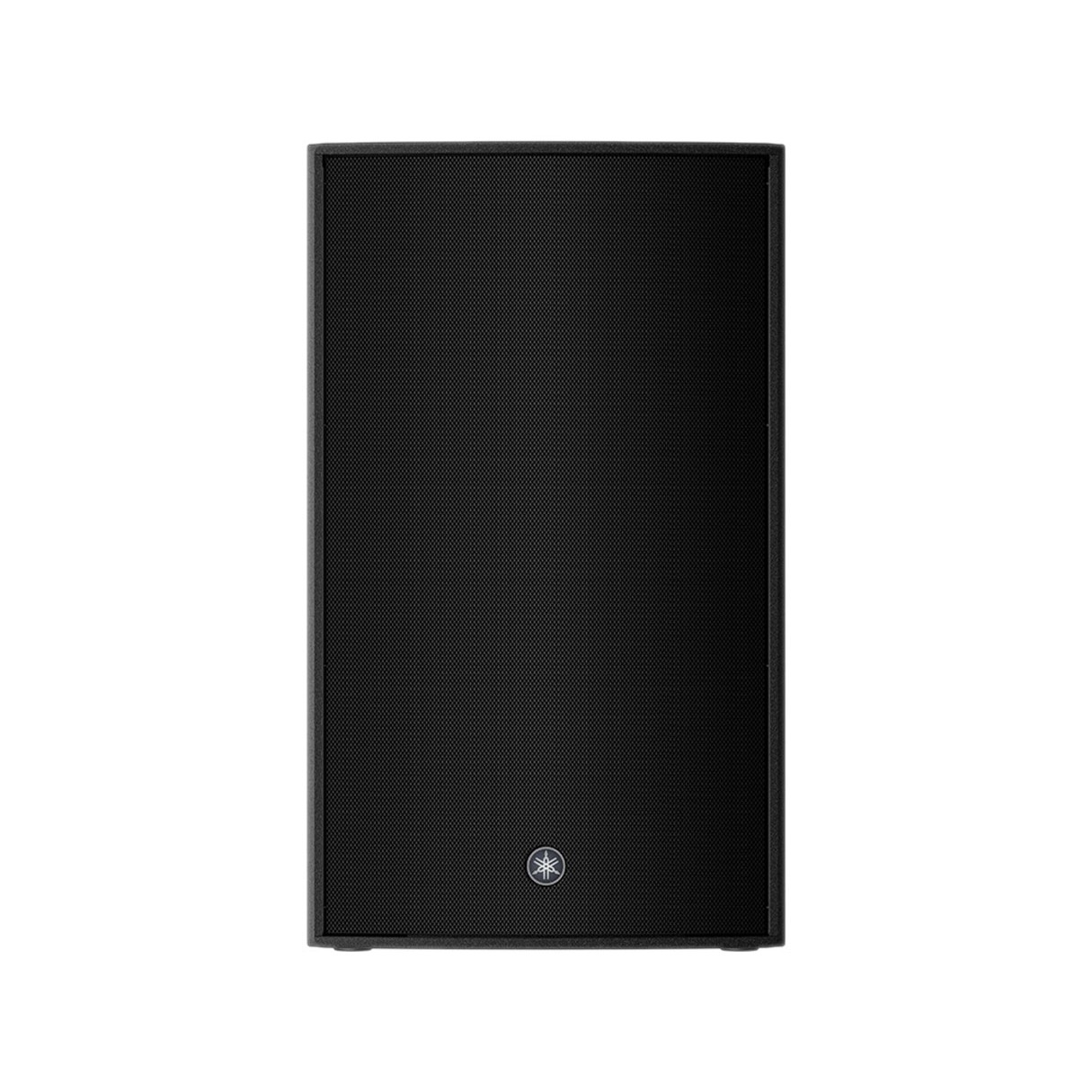

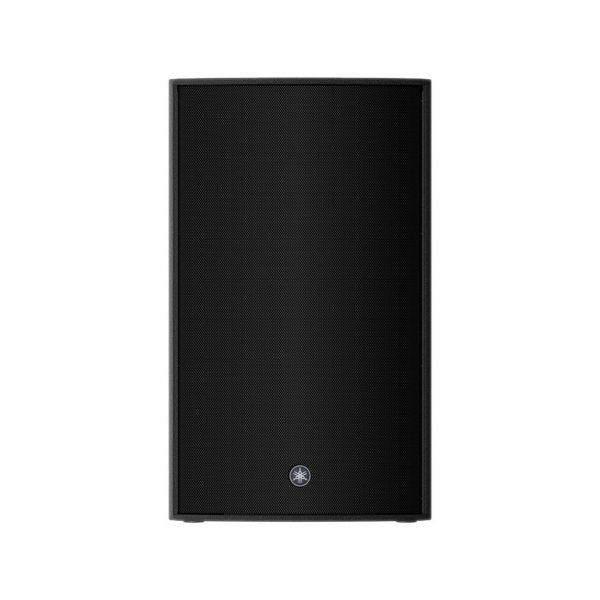

Loa thụ động Yamaha CZR12

Mô tả

Thông số kỹ thuật

General specifications
Speaker type		2-way Speaker, Bass-reflex
Frequency range (-10dB)		Passive: 43 Hz – 20 kHz, Normal (1): 42 Hz – 20 kHz, FOH (1): 38 Hz – 20 kHz
Coverage area		H90ﾟ x V60ﾟ Rotatable Constant Directivity Horn
Floor Monitor Angle		50° Symmetrical
Components	LF	12″ Cone, 3″ Voice Coil, Neodymium magnet
Components	HF	2″ Voice Coil, 1″ Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover		2.0 kHz
Power rating	NOISE	Passive (EIA 426-A) 400 W, Bi-amp LF (EIA 426-A): 400W, HF (AES): 50W
	PGM	Passive (EIA 426-A) 800 W, Bi-amp LF (EIA 426-A): 800W, HF (AES): 100W
	PEAK	Passive (EIA 426-A) 1600 W, Bi-amp LF (EIA 426-A): 1600W, HF (AES): 200W
Nominal impedance		Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω
SPL	Sensitivity (1W; 1m on axis)	Passive: 97dB SPL, Bi-amp: LF: 97dB SPL, HF: 108dB SPL
SPL	Peak (Calculated)	Passive: 129 dB SPL, Bi-amp: LF: 129dB SPL, HF: 131dB SPL
I/O connectors		SpeakON NL4MP x 2 (Parallel)
Handle		Aluminium die-cast, Side x2
Pole socket		Φ35 mm x2 (0° or -7°)
Rigging		M10 x 12
Dimensions	W	410 mm (16.1″)
	H	646 mm (25.4″) (with rubber feet)
	D	394 mm (15.5″)
Net weight		18.0 kg (39.7 lbs)
Options		Bracket: UB-DZR12H/V, Cover: SPCVR-DZR12
Others		Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black/White
