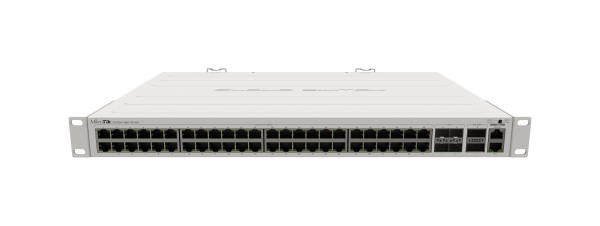

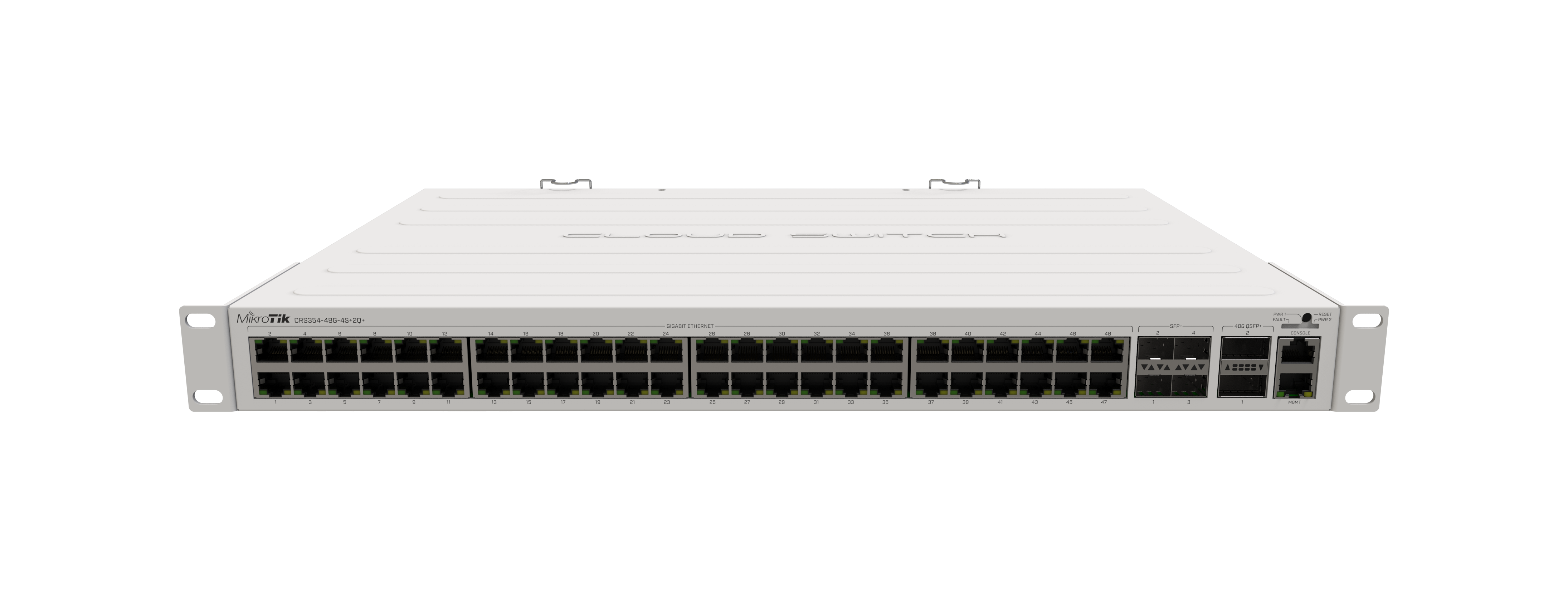

Switch Mikrotik CRS354-48G-4S+2Q+RM
- 48 Cổng Gigabit
- 4 Cổng SFP+ 10G
- 2 Cổng QSFP+ 40G
- Total non-blocking throughput: 168 Gbps
- Switching capacity: 336 Gbps
- Forwarding rate: 235 Mpps
Mô tả
Thông số kỹ thuật
| Specifications | |
| Product code | CRS354-48G-4S+2Q+RM |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 297 x 443 x 44 mm |
| RouterOS license | 5 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| Powering | |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 60 W |
| Max power consumption without attachments | 50 W |
| FAN count | 3 |
| Ethernet | |
| 10/100 Ethernet ports | 1 |
| 10/100/1000 Ethernet ports | 48 |
| Fiber | |
| SFP+ ports | 4 |
| Number of 40G QSFP+ ports | 2 |
| Peripherals | |
| Serial console port | RJ45 |
| Other | |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | IP20 |
| Included parts | – 2x IEC cords – Cable managment brackets – Rackmount ears (CRS354) – K-48 fastening set |
