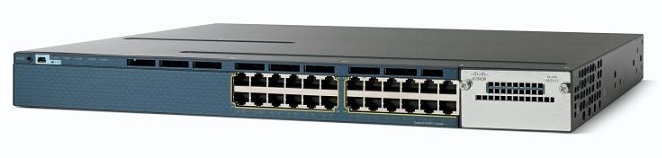

Switch CISCO Catalyst 3560 WS-C3560X-24T-S

Mô tả

Switch CISCO Catalyst 3560 WS-C3560X-24T-S

Cisco Catalyst 3560-X Series Switches are an enterprise-class lines of stackable and standalone switches, respectively. Cisco 3560X Switches provide high availability, scalability, security, energy efficiency, IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power supplies, and Media Access Control Security (MACsec) features. The Cisco Catalyst 3560-X switches enhance productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience.

– 24 10/100/1000 Ethernet ports

– Four optional uplink network modules with GE or 10GE ports

– Dual redundant, modular power supplies and fans

– Media Access Control Security (MACsec) hardware-based encryption

– Flexible NetFlow and switch-to-switch hardware encryption with the Service Module uplink

– USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port

Đặc tính kỹ thuật

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	WS-C3560X-24T-S
Product Type	Switch – 24 ports – L3 – Managed
Form Factor	Rack mountable – 1U
Switch Ports	24 x 10/100/1000 Ethernet Ports Ethernet Ports
Performance	Switching capacity : 160 Gbps
Routing Protocol	RIP-1, RIP-2, HSRP, static IP routing, RIPng
Remote Management Protocol	SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features	Hot swap module replacement, Layer 3 switching, Layer 2 switching, dynamic IP address assignment , DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), EIGRP Stub Routing
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae
DRAM Memory	256 MB
Flash Memory	128 MB Flash
Status Indicators	Port status, link activity, port transmission speed, port duplex mode, power, system
Connectivity Slots
Interfaces	24 x 10Base-T/100Base-TX/1000Base-T – RJ-45
	USB: 1 x 4 PIN USB Type A
	1 x console – mini-USB Type B – management
	1 x RS-232 – RJ-45 – management
	1 x 10Base-T/100Base-TX – RJ-45 – management
Expansion Slot (s)	1 (total) / 1 (free) x Expansion Slot
Power Supply
Power Device	Power supply – redundant – plug-in module
Installed Qty	1 (installed) / 2 (max)
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Rack Mounting Kit	Optional
MTBF	208,218 hour(s)
Compliant Standards	CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1
Voltage Required	120/ 230 VAC ( 50/60 Hz )
Features	Redundant Power System (RPS) connector
Width	44.5 x 46 x 4.5 cm
Weight	7 kg
