Switch CISCO Catalyst 2960 WS-C2960S-24TS-S

Mô tả

Untitled 1

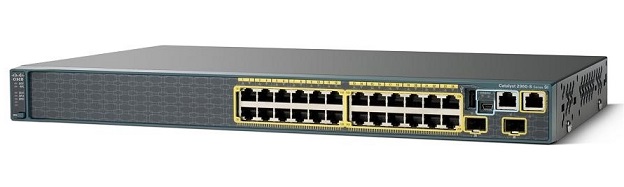

Switch CISCO Catalyst 2960 WS-C2960S-24TS-S

Untitled 1

– The Cisco Catalyst 2960-S Series Switches WS-C2960S-24TS-S is WS-C2960S-24TS-L lited from Lan Base software to Lan Lite for more economical and easier to manage for customers of entry-level branch office or wiring closet networks. WS-C2960S-24TS-Ssimplifies the migration from nonintelligent hubs and unmanaged switches to a fully scalable and reliable network, the LAN Lite IOS software supports standard Layer 2 security, QoS, and availability while lowering the network total cost of ownership.

– The Cisco Catalyst WS-C2960S-24TS-S Ethernet Switch is the leading Layer 2 edge switch, providing improved operational excellence, highly secure business operations, improved sustainability, and an enhanced workspace experience. It is fixed-configuration access switch designed for entry-level enterprise, midmarket, and branch office networks.

Đặc tính kỹ thuật

General
Device Type	Switch
Enclosure Type	Rack-mountable, 1U
Memory
RAM	128 MB
Flash Memory	64 MB flash
Networking
Ports Qty	24 x Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Transfer Rate	1 Gbps
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol	SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, FTP, TFTP, SSH-2
Connectivity Technology	Wired
Communication Mode	Half-duplex, full-duplex
Switching Protocol	Ethernet
MAC Address Table Size	8K entries
Status Indicators	Port status, link activity, port transmission speed, port duplex mode, power, system
Features	Layer 2 switching, DHCP support, auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast St
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)
Expansion / Connectivity
Expansion Slots Total (Free)	2 (2) x SFP (mini-GBIC)
Interfaces	24 x network, Ethernet 10Base-T/100Base-TX/1000Base-T, RJ-45 , 1 x USB, 4 pin USB Type A , 1 x USB, mini-USB Type B , 1 x management, console, RJ-45
Miscellaneous
Rack Mounting Kit	Optional
MTBF	335,014 hour(s)
Encryption Algorithm	SSL
Authentication Method	RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Compliant Standards	CE, TUV GS, CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, NOM, EN55024, EN55022 Class A, CISPR 22, CB, EMC, MIC, RoHS, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, FCC Part 15 A, CS
Power
Power Device	Power supply, internal
Voltage Required	AC 120/230 V ( 50, 60 Hz )
Power Consumption Operational	36 Watt
Software / System Requirements
Software Included	Cisco IOS LAN Lite
Environmental Parameters
Min Operating Temperature	23 °F
Humidity RangeOperating	10, 95%
Dimensions	17.5 in x 11.8 in x 1.8 in
Weight	9.9 lbs
