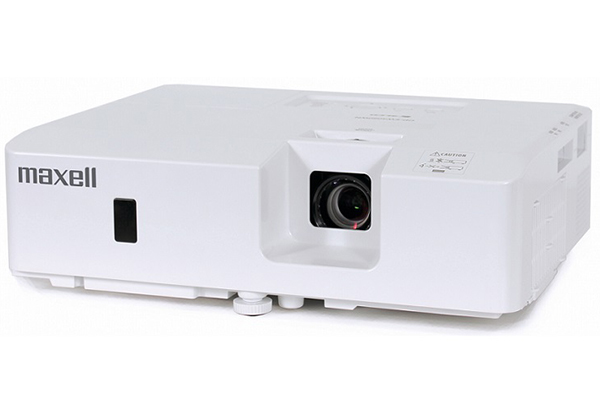

Máy chiếu Maxell MC-EX3051

Mô tả

Máy chiếu Maxell MC-EX3051

– Công nghệ trình chiếu: 0.64 inch (4:3) 3LCD.

– Cường độ sáng: 3.300 ANSI lumens.

– Độ phân giải máy chiếu: 1,024 x 768 (XGA).

– Độ tương phản: 20,000 : 1.

– Công suất bóng đèn: 230W.

– Màn hình hiển thị: 30 inch – 300 inch.

– Số màu hiển thị: 16.7 triệu màu.

– Tương thích với các tín hiệu: VGA, SVGA, XGA, WXGA, SXGA, SXGA+, HD, UXGA.

– Nguồn điện: 100 – 120VAC, 220V – 240VAC (50/60Hz).

– Công suất tiêu thụ: 320W/ 310W.

– Kích thước: 355 x 267 x 106mm.

– Trọng lượng: 3.5kg.

Đặc tính kỹ thuật

Model	MC-EX3051
OPTICAL
Display Device	0.64′ (4:3) 3LCD
Resolution	1,024 x 768 (XGA)
Light Output (Brightness)	3,300 ANSI lumens
Contrast Ratio	20,000 : 1
Lens	Manual focus, manual zoom x 1.2
Lamp Wattage	230W
Lamp Life	Approximately 6,000 Hours (Normal Mode) / 12,500 Hours (Eco Mode)
Throw Ratio	1.5 – 1.8 :1
Diagonal Display Size	30′ – 300′ (76cm – 762cm)
Number of Colors	16.7M colours
Number of Colors	16.7M colours	Focus Distance	33′ – 427′
Keystone Correction	V and H: +/- 30º
COMPATIBILITY
Computer	VGA, SVGA, XGA, WXGA, SXGA, SXGA+, HD, UXGA (compressed), MAC 16′
H-Sync	15 kHz – 106 kHz
V-Sync	56 Hz – 120 Hz
Composite Video	NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM
Component Video	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
HDMI	480i, 480p, 576i, 576p, 720p, 1080i, 1080p Computer signal TMDS Clock 25 MHz – 162 MHz
TERMINALS
COMPUTER IN 1	15-pin mini D-sub x 1 (Shared with analog component video input)
COMPUTER IN 2	15-pin mini D-sub x 1 (Shared with analog component video input and monitor out)
MONITOR OUT	15-pin mini D-sub x 1 (Shared with computer in 2 and analog component video input)
VIDEO IN
Composite Video	RCA connector x 1
Component Video	15-pin mini D-sub x 2 (Shared with computer in 1, in 2/ monitor out)
HDMI IN	HDMI x 2 (HDCP compliant)
AUDIO IN	3.5mm stereo mini jack x 2, RCA jack (L/R) x 1
AUDIO OUT	3.5mm stereo mini jack x 1
Control Terminal (RS232C)	9-pin D-sub x 1 (RS-232 control)
USB-A	USB Type A x 1 (PC-less presentation or Wireless adapter)
USB-B	USB Type B x 1 (Remote control mouse or PC screen display)
Network LAN Wired	RJ-45 port (10 base-T/ 100 base-TX)
Network LAN Wireless	USB-A, IEEE802.11 a/b/g/n/ac – optional wireless adapter required
POWER & PHYSICAL
Power Supply	AC 100V – 120V / AC 220V – 240V (50/60 Hz)
Power Consumption	320W / 310W
Operating Temperature	0-35ºC
Dimension of the Product Main Body	355(W) x 267(H) x 106(D)mm
Weight	Approx. 3.5 kg
