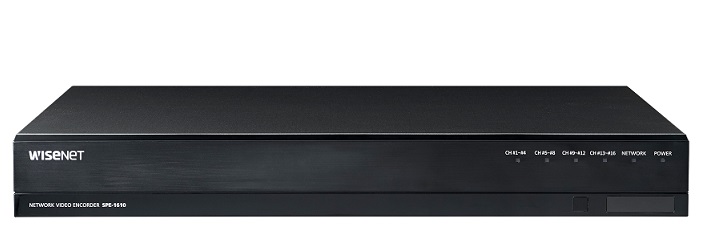

Bộ giải mã tín hiệu camera IP 16 kênh Hanwha Techwin WISENET SPE-1610A
Mô tả
Bộ giải mã tín hiệu camera IP 16 kênh Hanwha Techwin WISENET SPE-1610A
– Độ phân giải: Max. 4 Megapixel.
– Tốc độ khung hình: Max. 15fps@4MP, 30fps@1080p.
– Chuẩn nén hình ảnh: H.264, MJPEG-4.
– Hỗ trợ Dual streaming (up to 3 profiles per CH).
– Cổng kết nối: 1 RJ-45 (10/100/1000 BASE-T).
Đặc tính kỹ thuật
| Model | SPE-1610A |
| Video | |
| Input Channel | 16CH BNC 1.0 Vpp / 75Ω composite NTSC/PAL |
| Input Signal & Resolution | CVBS, AHD( 2&4MP), CVI (2MP), TVI (2MP) Auto/Manual Detection |
| Video Out | 1 HDMI Out (16 multi Image, 1920×1080) |
| Operational | |
| Motion Detection | Off / On |
| Privacy Masking | Off / On (4ea rectangular zones) |
| Alarm I/O | 16 Input / 4 Output |
| Alarm Trigger | Motion detection, Alarm input, Video loss, Tampering, Network disconnect |
| Alarm Events | File Upload Via FTP, E-mail |
| Remote Control Interface | 1ea RS-485 (Half duplex) |
| RS-485 Protocol | SAMSUNG-T, PELCO-P/D |
| Coaxial Control | NTSC/PAL: Pelco-C (Coaxitron), AHD: ACP (AHD Coax protocol) |
| Network | |
| Interface | 1 RJ-45 (10/100/1000 BASE-T) |
| Protocol Support | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, ONVIF, Bonjour |
| Video Compression Format | H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High, MJPEG |
| Resolution | 4M, 1920 x 1080, 1280 x 720, 928 x 480, 928 x 240, 704 x 480, 704 x 240, 352 x 240 |
| Streaming Capability | Multiple streaming (Up to 3 Profiles per channel) |
| Audio I/O | 4 Line Input / 1 Line Output |
| Audio Compression Format | G.711 u-law |
| Max. User Access | 10 users at Unicast Mode |
| Application Programming Interface | ONVIF profile S, SUNAPI (HTTP API) |
| Compatabile Software & Recoder | Smart viewer, SSM, Wisenet mobile viewer, Wisenet NVR (P/X/Q series) |
| General | |
| Input Voltage/ Current | 12V DC |
| Power Consumption | Max. 24W (12V, 2A) |
| Operating Temperature | -10°C ~ +50°C |
| Dimensions (WxHxD) | 370 x 50.7 x 320 mm |
| Weight | 2.25kg |
– Hãng sản xuất: Hanwha Techwin Hàn Quốc.
– Bảo hành: 24 tháng.
