| General specifications |
| Output power |
1kHz (THD+N=1%: 3Ω) |
100W x 2 (20ms Burst) |
| 1kHz (THD+N=1%: 4Ω) |
120W x 2 (20ms Burst) |
| 1kHz (THD+N=1%: 8Ω) |
100W x 2 (20ms Burst) |
| High impedance: 100V line |
120W x 2 or 200W x 1 |
| High impedance: 70V line |
120W x 2 or 200W x 1 |
| Total harmonic distortion |
≤0.2% (Line in to Speaker out, Half power @1kHz, 3Ω/4Ω/8Ω), ≤0.2% (Line in to Speaker out, Half Power @1kHz, 70V/100V, 120W/200W) |
| Frequency response |
0dB, -2.5dB, +1.0dB (Line in to THRU OUT, 20Hz to 20kHz), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 50Hz to 20kHz, 1W, 3Ω/4Ω/8Ω), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 90Hz to 20kHz, 1W, 70V/100V, 120W/200W) |
| Crosstalk |
– |

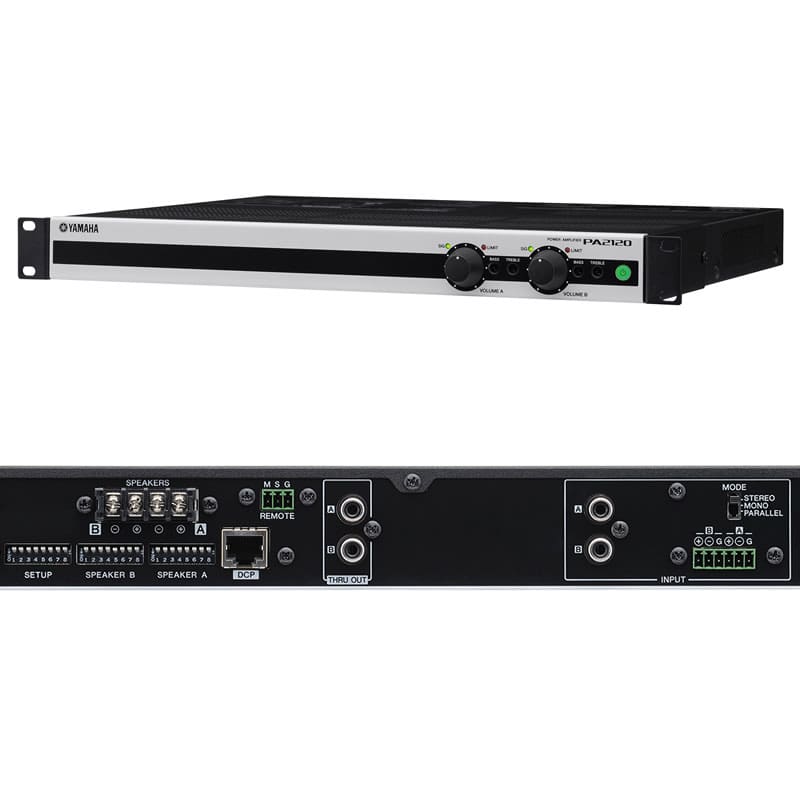

| I/O Connectors |
Mic/Line Input |
– |
| Line Input |
Input A-B:MONO RCA pin x 2 (unbalanced) or 3.5mm Euro block (6-pin, balanced) |
| Speaker Output |
Barrier strip x 2 pairs |
| Line Out |
THRU OUT: MONO RCA pin (unbalanced) x2 |
| Control ports |
RJ-45 (for DCP4V4S, DCP1V4S , DCP4S), Remote (3.5mm Euro block 3-pin) |
| Mic Input |
– |
| Stereo Input |
– |
| Input Level |
Line input (unbalanced): -10dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip) / Line input (balanced): +4dBu (Sensitivity), +4dBu (Nominal), +24dBu (Max before clip) |
| Output Level |
-10dBV (THRU OUT, Nominal) |
| Processors |
Speaker EQ (VXS:Full Range, VXC, VXS10S/ST), HPF (150Hz), LPF (150Hz, 200Hz) |
| Protection circuit |
Load protection |
Power switch on/off: Mute the output*, Output voltage protection: Compress the output*, DC-fault: Power supply shutdown (*Restored automatically) |
| Amplifier protection |
Thermal: Limit the output* → Mute* → Shutdown, Over current: Mute the output*, Integrated power limit: Compress the output* (*Restored automatically) |
| Power supply protection |
Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Limit the output* →Power supply shutdown (*Restored automatically) |
| Amplifier class |
Class D |
| Cooling |
Conventional cooling, bottom to up airflow |
| Power requirements |
100V, 120V, 230V – 240V, 50Hz / 60Hz |
| Power consumption |
60W (1/8 max power, 4Ω, AC100V, pink noise at all channels) |
| Dimensions |
W |
480mm (18.9”) *1 |
| H |
45mm (1.8”) *1 |
| D |
379mm (14.9”) *1 |
| Net weight |
4.8kg (10.6lbs) |
| Accessories |
AC power cable, 3.5mm Euroblock plug (6-pin) x 1, Euroblock pulg (3-pin) x 1, Owner’s manual, Specification sheet |
| Options |
DCP4V4S, DCP1V4S, DCP4S (Digital Control Panel) |
| Certificate |
ENERGY STAR |
| Others |
Operating Temperature: 0°C to + 40°C, Storage Temperature: -20°C to + 60°C, Rack-mountable when ensuring sufficient ventilation above and below the unit |
