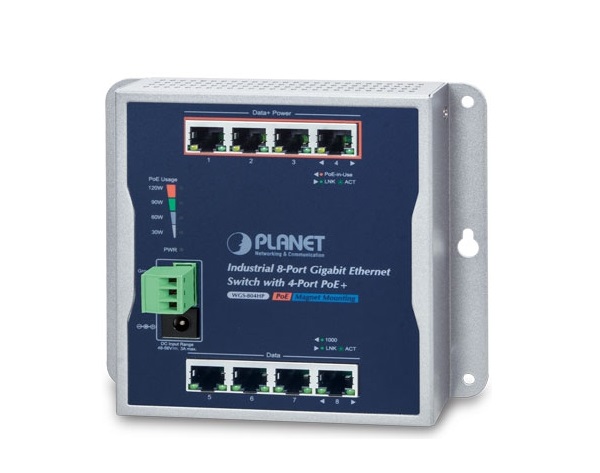

8-Port 10/100/1000T with 4-Port PoE+ Wall Mounted Switch PLANET WGS-804HP
Mô tả
8-Port 10/100/1000T with 4-Port PoE+ Wall Mounted Switch PLANET WGS-804HP
Physical Port
– 8-Port 10/100/1000BASE-T Gigabit RJ-45 copper with 4-Port IEEE 802.3at/ af PoE Injector (Port-1 to Port-4)
Power over Ethernet
– Complies with IEEE 802.3at High Power over Ethernet end-span PSE
– Backward compliant with IEEE 802.3af Power over Ethernet end-span PSE
– Up to 4 ports of IEEE 802.3af / 802.3at devices powered
– Supports PoE Power up to 30.8 watts for each PoE port
– Auto detects powered device (PD)
– Circuit protection prevents power interference between ports
– Remote power feeding up to 100 meters
Layer 2 Features
– High performance Store and Forward architecture; runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
– IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
– 9K Jumbo frame supports in 1000Mbps duplex mode
– Automatic address learning and address aging
Industrial Case/ Installation
– Compact size, wall-mounted, magnetic wall mount and DIN-rail design
– IP30 metal chassis
– Supports -10 to 60 degrees C operating temperature
– Supports EFT 6000VDC protection for power line
– Supports ESD 6000VDC Ethernet protection
– LED indicators for real-time PoE usage
– 48V~56V DC input range for booting with polarity reverse protect function
Specifications
| Hardware | |
| Network Connector | 8-Port RJ45 for 10/100/1000BASE-T |
| PoE Inject Port | 4-Port with 802.3af / 802.3at PoE injector function (Port-1 to Port-4) |
| Switch Architecture | Store and forward |
| MAC Address Table | 8K MAC address table with auto learning function |
| Data Buffer | 1Mbit |
| Switch Fabric | 16Gbps / non-blocking |
| Switch Throughput | 11.9Mpps@64Bytes |
| Jumbo Frame | 9Kbytes |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| LED Indicators | Power LED: Power (Green) PoE Power Usage LED: 30W, 60W, 90W, 120W (Green) PoE Port(Port-1 to Port-4): PoE-in-Use (Orange), LNK/ACT (Green) 10/100/1000BASE-TX Port (Port-5 to Port-8): 1000 (Green), LNK/ACT (Green) |
| Connector | Removable 3-pin terminal block for power input DC power jack with 2.0mm central pole |
| Power Requirements | 48~56V DC, 3A (max.) |
| Power Consumption | 140 watts / 478BTU |
| ESD Protection | 6KV DC |
| EFT Protection | 6KV DC |
| Enclosure | IP30 metal |
| Dimensions (W x D x H) | 148 x 24.2 x 134 mm |
| Weight | 510g |
| Installation | Wall mount, magnetic wall mount and DIN-rail kit |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af/ 802.3at Power over Ethernet PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | IEEE 802.3af Standard – Per port 48V~56V DC (depending on the power supply), max. 30 watts IEEE 802.3at Standard – Per port 50V~56V DC (depending on the power supply), max. 30 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| * PoE Power Budget | 120 watts (depends on power input) |
| Max. Number of Class 2 PD | 4 |
| Max. Number of Class 3 PD | 4 |
| Max. Number of Class 4 PD | 4 |
| Standard Conformance | |
| Standard Compliance | IEEE 802.3: Ethernet IEEE 802.3u: Fast Ethernet IEEE 802.3ab: Gigabit Ethernet IEEE 802.3x: Flow Control IEEE 802.3af: Power over Ethernet IEEE 802.3at: High Power over Ethernet |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (Free fall) IEC 60068-2-27 (Shock) IEC 60068-2-6 (Vibration) |
| Environment | |
| Operating | Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
– Sản xuất tại Đài Loan.
– Bảo hành: 12 tháng.
