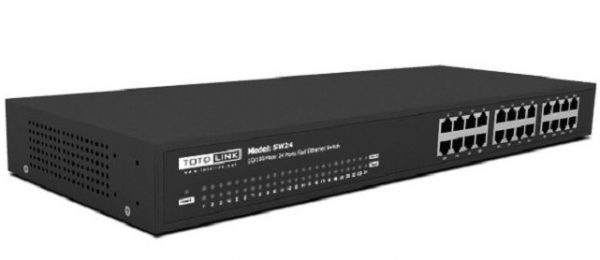

24 ports 10/100Mbps Switch TOTOLINK SW24

Mô tả

24 ports 10/100Mbps Switch TOTOLINK SW24

– 24 ports 10/100Mbps, Auto negotiation (MDI/MDIX)

– Wire-speed performance, 19′ rackmount type

– Support per-port bandwidth control

– Support flow control, Nway auto-negotiation for any port

– MAC address auto-leading and auto AGING

– Store and forward

– Support PHY register read/write access

– Complies with standards IEEE802.310Base-T IEEE802.3U100Base-TX

Cable	Cat,3,4,5 UTP/STP
port	10/100Mbps N-Way Switch T 24
Duplex Modes	Duplex All Ports(Up to 200Mbps)
Uplink	All ports Auto MDI/MDIX(Auto Uplink)
Protocol	CSMA/CD
Switching Architecture	Store & Forward
Filter/Forward Rate	10 BASE-T-14880pps (packet/sec.) 100 BASE – TX- 148800 pps (packet/sec.)
Mac Address	8K
Backplane Bandwidth	3.2Gbps
Chipset	RTL8324D/S
LED	Power 1 LED ,10/100Mbps Link LED ;LED per Port
Power	DC 5V/1A 100V~240VAC
Material	Iron
Operating Temperature	0~40 degree
Storage Temperature	-10~65 degree
Operating Humidity	10%~90% non-condensing
Size	440mm 160mm 44.5mm
