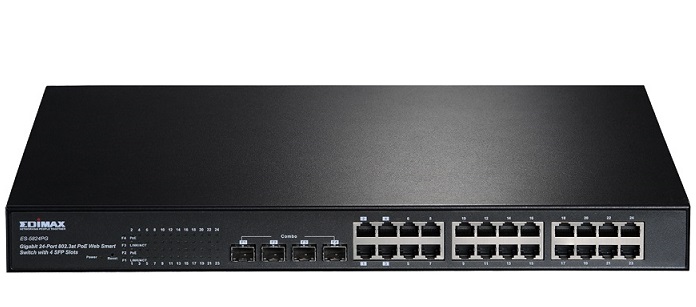

24-Port Gigabit PoE+ with 4 SFP Slots Web Smart Switch EDIMAX ES-5824PG

Mô tả

24-Port Gigabit PoE+ with 4 SFP Slots Web Smart Switch EDIMAX ES-5824PG

– Complies with IEEE 802.3, 802.3af/at, 802.3u, 802.3x and 802.1q standards

– Supplies 48VDC with 30W output per port (total power budget 390W)

– Power consumption budget UI to monitor power usage

– Port-based remote power on/off to restart connected PoE devices individually

– Supports IGMP snooping to optimize network performance

– Supports 32 port-based VLAN and 20 tag-based VLAN groups

– Supports 2 trunking groups (4 ports per group and up to 2 groups for each device)

Đặc tính kỹ thuật

Standards	IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.ab 1000BaseT IEEE 802.3z 1000BaseSX/LX IEEE 802.3af Power Over Ethernet IEEE 802.3at Power Over Ethernet IEEE 802.3x Full-duplex and Flow Control IEEE 802.1x Port-based Network Access Control IEEE 802.1Q VLAN IEEE 802.3ad Link Aggregation IEEE 802.1d Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1p Class of Service, Priority Protocols
Features	RJ-45 Gigabit Ports: 24-port with PoE Combo SFP Open Slots: 4 MAC Address: 8K Buffer Memory: 500 KB Jumbo Frames: 9.6 KB Transmission Method: Store and Forward
Smart Features	VLAN: 32 Tagged VLAN: 32 VLAN ID: 1~ 4094 Trunk Groups: 8 Quality of Service: up to 4 queues IGMP Snooping LACP, RSTP MAC Filtering Rate Limiting (Ingress rate and Egress rate) 802.1x Port-based Network Access Control Management: Port Mirroring, Password-protected Access, Port Settings, Web-base Management, Graphic User Interface
Transmission Media	10BaseT Cat. 3, 4, 5 UTP/STP 100BaseTX Cat. 5 UTP/STP 1000BaseT Cat. 5E UTP/STP
Power Output	48V /DC Per Port Output
Power Consumption	390 Watts
Dimensions	440 × 330 × 44mm(L x W x H)
Operating Temperature	0 to 40℃
Storage Temperature	-20 to 90℃
Humidity	10 to 90% RH (non-condensing)
