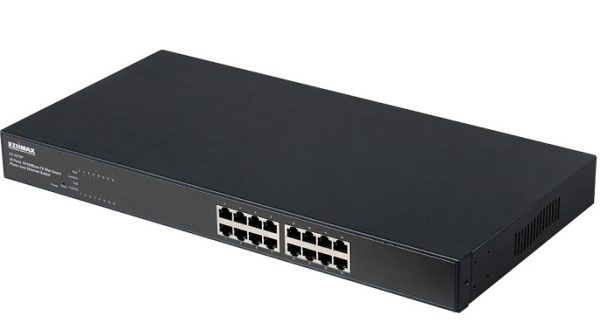

16-Port 10/100Mbps PoE Smart Switch EDIMAX ES-5816P
Mô tả
16-Port 10/100Mbps PoE Smart Switch EDIMAX ES-5816P
– Complies with IEEE 802.3/802.3af/802.3u/802.3x/802.1p/802.1q standards
– Supplies 48VDC with 15.4W output per port
– Store-and-Forward architecture
– Provides port based remote power On/Off to restart connected PoE devices individually
– Supports Auto MDI/MDI-X and Auto-Negotiation
– Supports IGMP snooping to optimize network performance
– Supports 16 port based VLAN and 20 Tag Base VLAN groups
– Supports 2 Trunking groups (4 ports per group and up to 2 groups for each device)
Đặc tính kỹ thuật
| Standards | IEEE 802.3af Power over Ethernet IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100BaseTX Fast Ethernet ANSI / IEEE 802.3 NWay auto-negotiation IEEE 802.3x Flow Control in full duplex Collision / Carrier sense based backpressure in half duplex IEEE 802.1p QoS IEEE 802.1Q VLAN Tag |
| Features | Number of Ports: 16 PoE ports 10/100BaseT/T(X) |
| MAC Address: 4K | |
| Buffer Memory: 1.5 Mb | |
| Transmission Method: Store and Forward | |
| Smart Features | Port Security Filter: TCP/UDP port based MAC Address based IP Address based VLAN Setting: Port Based VLAN Tag Based VLAN ( 20 entries ) VLAN ID (Up to 4094K ) QoS: Priority ( Port Based / TOS / Diffserv /DSCP/IPv4/ IPv6) Class of Service Configuration TCP/UDP Port Based Management: Password-protected Access, On /Off PoE Port Settings, Web-base Management, Graphic User Interface Bandwidth Control Broadcast Storm Control Port Mirroring Port Configuration Programmable aging timer IGMP Snooping Trunk ( 4 Ports per Group, 2 Group per Device ) Provide DHCP Client Firmware Update ( Web Base / TFTP ) |
| Filtering/Forwarding Rates | 100Mbps port – 148,800pps 10Mbps port – 14,880pps |
| Transmission Media | 10BaseT Cat. 3, 4, 5 UTP/STP |
| 100BaseTX Cat. 5 UTP/STP | |
| LED Indicators | Per Port: Link/Act, PoE Act/Status Per Unit: Power |
| Power Input | 100~240V/AC, 50~60Hz |
| Powe Output | 48V/DC Per Port Output – 15.4 W Max Per Port 16 Ports at Full 15.4 W Output Supported |
| Power Consumption | 250 Watts (Max) |
| Dimension | 440 × 220 × 42 (L x W x H) |
| Weight | 3.8 kg |
| Operating Temperature | 0 to 60℃ |
| Storage Temperature | -20 to 90℃ |
| Humidity | 10 to 90% RH (non-condensing) |
– Bảo hành: 12 tháng.
