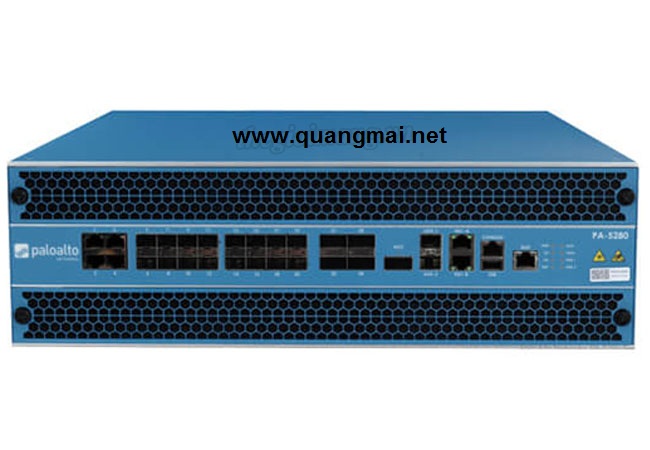

Thiết bị tường lửa Palo Alto PA-5280 (PAN-PA-5280-AC)

Mô tả

Thiết bị tường lửa Palo Alto PA-5280 (PAN-PA-5280-AC)

PA-5280 PAN-PA-5280-AC Palo Alto Networks PA-5280 with redundant AC power supplies Call

Thiết bị tường lửa Palo Alto Networks PA-5280

SKU PAN-PA-5280-AC
Performance and Capacities
Firewall throughput (HTTP/appmix) 54.2 / 60.0 Gbps
Threat Prevention throughput (HTTP/appmix) 27.1 / 33.8 Gbps
IPsec VPN throughput 28 Gbps
Max sessions 65M
New sessions per second 586,000
Virtual systems (base/max) 25/225
Hardware Specifications
I/O 100/1000/10G Cu (4), 1G/10G SFP/ SFP+ (16), 40G/100G QSFP28 (4)
Management I/O 10/100/1000 (2)
40G/100G QSFP28 HA (1)
10/100/1000 out-of-band management (1)
RJ45 console port (1)
Storage Capacity 240 GB SSD, RAID1, system storage
2 TB HDD, RAID1, log storage
Power Supply (Avg/Max Power Consumption) 571 / 685 W
Max BTU/hr 2,340
Power Supplies (Base/Max) 1:1 fully redundant (2/2)
AC Input Voltage (Input Frequency) 100–240 VAC (50–60 Hz)
AC Power Supply Output 1,200 watts/power supply
Max Current Consumption AC: 8.5 A @ 100 VAC, 3.6 A @ 240 VAC
Max Inrush Current AC: 50 A @ 230 VAC, 50 A @ 120 VAC
Mean Time Between Failure (MTBF) 9.12 years
Rack Mount (Dimensions) 3U, 19” standard rack
5.25” H x 20.5” D x 17.25” W
Weight (Standalone Device/As Shipped) 46 lbs / 62 lbs
Safety cTUVus, CB
EMI FCC Class A, CE Class A, VCCI Class A
Environment Operating temperature: 32° to 122° F, 0° to 50° C
Non-operating temperature: -4° to 158° F, -20° to 70° C

Networking Features
Interface Modes L2, L3, tap, virtual wire (transparent mode)
Routing OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing
Policy-based forwarding
Point-to-Point Protocol over Ethernet (PPPoE)
Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3
Bidirectional Forwarding Detection (BFD)
SD-WAN Path quality measurement (jitter, packet loss, latency)
Initial path selection (PBF)
Dynamic path change
IPv6 L2, L3, tap, virtual wire (transparent mode)
Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption
SLAAC
IPsec VPN Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication)
Encryption: 3DES, AES (128-bit, 192-bit, 256-bit)
Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512
GlobalProtect large-scale VPN for simplified configuration and management
VLANs 802.1Q VLAN tags per device/per interface: 4,094/4,094
Aggregate interfaces (802.3ad), LACP
Network Address Translation NAT modes (IPv4): static IP, dynamic IP, dynamic IP and port (port address translation)
NAT64, NPTv6
Additional NAT features: dynamic IP reservation, tunable dynamic IP and port oversubscription
High Availability Modes: active/active, active/passive, HA clustering
Failure detection: path monitoring, interface monitoring
Mobile Network Infrastructure GTP Security
SCTP Security
