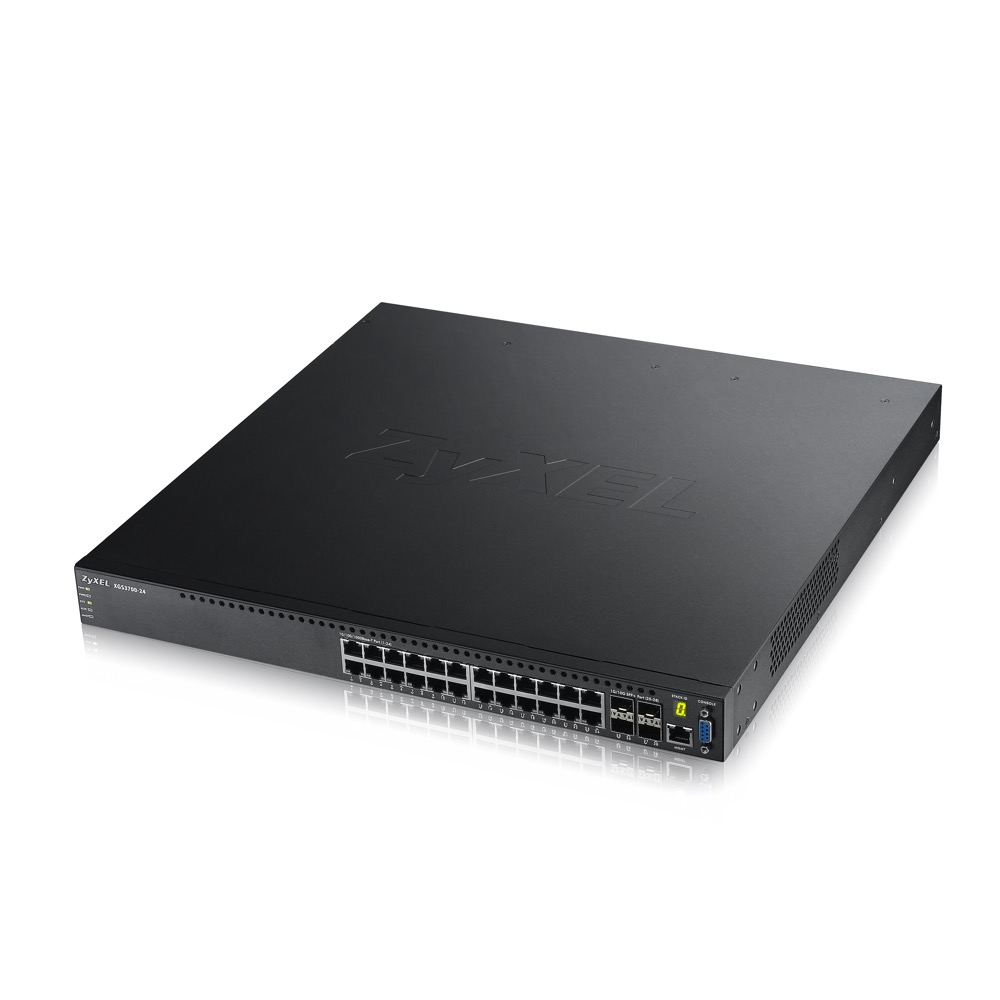

Switch ZYXEL XGS3700-24HP

Mô tả

Switch ZYXEL XGS3700-24HP

Thiết bị mạng Switch ZYXEL XGS3700-24HP

Model XGS3700-24HP
Product name 24-port GbE L2+ PoE Switch with 10GbE Uplink
Switch class Layer 2 Plus (Layer 3 Lite)
Port Density
Total port count 28
100/1000 Mbps
100/1000 Mbps PoE 24
10-Gigabit SFP+ 4
Stacking
Performance
Switching capacity (Gbps) 128
Forwarding rate (Mpps) 95
Packet buffer (byte) 2 M
MAC address table 16 K
L3 forwarding table Max. 1 K IPv4 entries; Max. 512 IPv6 entries
Static route 64
IP interface 128
Power
Input 100-240V, 50/60Hz
Max. power consumption (watt) – Single PSU 534.3 W
– Dual PSU 1,098.5 W
Total PoE power budget (watt) – Single PSU 460 W
– Dual PSU 1,000 W
Redundant power supply ✔ (optional)
Physical Specifications
Item Dimensions (WxDxH) (mm/in.) 440 x 437 x 40/ 17.32 x 17.2 x 1.57
Item Weight (kg/lb.) 7.55/ 16.64
Removable power/fan module ✔ /✔
Included accessories – Power cord
– Rack mounting kit
Environmental Specifications
Operating Temperature 0°C to 50°C (32°F to 122°F)
Humidity 10% to 95% (Non-condensing)
Storage Temperature -40°C to 70°C (-32°F to 158°F)
Humidity 10% to 90% (Non-condensing)
MTBF (hr) 220,000
Heat dissipation (BTU/hr) – Single PSU 1,821
– Dual PSU 3,745.9
Acoustic noise @25°C 53.3 dBA
