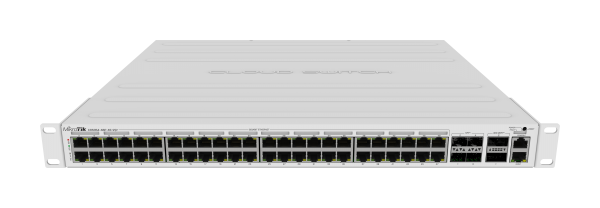

Switch PoE Mikrotik CRS354-48P-4S+2Q+RM
- 48 Cổng Gigabit PoE+
- 4 Cổng SFP+ 10G
- 2 Cổng QSFP+ 40G
- Tổng công suất PoE: 700W
- Total non-blocking throughput: 168 Gbps
- Switching capacity: 336 Gbps
- Forwarding rate: 235 Mpps
- Operating system: RouterOS v7 / SwitchOS
Mô tả
Thông số kỹ thuật
| Specifications | |
| Product code | CRS354-48P-4S+2Q+RM |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 443 x 382 x 44 mm |
| RouterOS license | 5 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| Powering | |
| Number of AC inputs | 1 |
| AC input range | 100-240 |
| Max power consumption | 800 W |
| Max power consumption without attachments | 85 W |
| FAN count | 4 |
| FAN count | |
| PoE-out ports | Ether1-Ether48 |
| PoE out | 802.3af/at |
| Max out per port output (input 18-30 V) | 1000 mA |
| Max out per port output (input 30-57 V) | 570 mA |
| Total output current | 27A at 26V OR 13.2A at 53V |
| Total output power | 700W |
| Ethernet | |
| 10/100 Ethernet ports | 1 |
| 10/100/1000 Ethernet ports | 48 |
| Fiber | |
| SFP+ ports | 4 |
| Number of 40G QSFP+ ports | 2 |
| Peripherals | |
| Serial console port | RJ45 |
| Other | |
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | IP20 |
| Included parts | – IEC cord – Cable managment brackets – Rackmount ears (CRS354) – Rackmount rear support ears (1/2) – Rackmount rear support ears (2/2) – K-48 fastening set |
