Palo Alto PA-850 (PAN-PA-850)

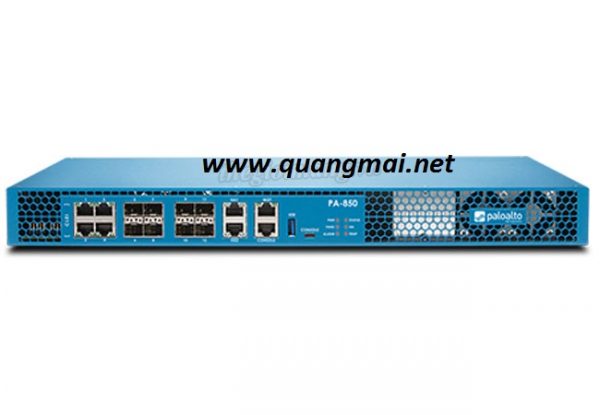

Thiết bị tường lửa Palo Alto Networks PA-850 (PAN-PA-850) ● 4 x 10/100/1000 Mbps RJ-45 ports ● 8 x Gig SFP ports (or 4 x Gigabit SFP, 4 x 10Gigabit SFP+) ● 1 x 10/100/1000 out-of-band management port ● 2 x 10/100/1000 high availability ● 1 x RJ-45 console port ● 1 x USB port ● 1 x Micro USB console port, Storage Capacity: 240 GB SSD.
- Giá bán : Liên hệ để có giá tốt
- Thiết bị tường lửa Palo Alto Networks PA-850
SKU PAN-PA-850 Performance and Capacities Firewall throughput (HTTP/appmix) 2.1 / 2.1 Gbps Threat Prevention throughput (HTTP/appmix) 1.0 / 1.2 Gbps IPsec VPN throughput 1.6 Gbps New sessions per second 13,000 Max sessions 192,000 Hardware Specifications I/O ● 10/100/1000 (4), Gigabit SFP (8) or
● 10/100/1000 (4), Gigabit SFP (4), 10 Gigabit SFP+ (4)Management I/O 10/100/1000 out-of-band management port (1)
10/100/1000 high availability (2)
RJ-45 console port (1)
USB port (1)
Micro USB console port (1)Storage Capacity 240 GB SSD Power Supply AC 450 W power supplies (2); one is redundant Power Consumption Maximum: 240 W
Average: 64 WMax BTU/hr 256 Input Voltage (Input Frequency) 100–240 VAC (50–60Hz) Max Current Consumption 2.0 A @ 100 VAC, 1.0 A @ 240 VAC Max Inrush Current 1.0 A @ 230 VAC, 1.84 A @ 120 VAC Rack Mount (Dimensions) 1U, 19” standard rack (1.75” H x 14.5” D x 17.125” W) Weight (Standalone Device/As Shipped) 13.5 lbs / 21.5 lbs Safety cTUVus, CB EMI FCC Class A, CE Class A, VCCI Class A Environment – Operating temperature: 32° to 104° F, 0° to 40° C
– Non-operating temperature: -4° to 158° F, -20° to 70° CAirflow Front to back
Networking Features Interface Modes L2, L3, tap, virtual wire (transparent mode) Routing OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing
Policy-based forwarding
Point-to-Point Protocol over Ethernet (PPPoE)
Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3SD-WAN Path quality measurement (jitter, packet loss, latency)
Initial path selection (PBF)
Dynamic path changeIPv6 L2, L3, tap, virtual wire (transparent mode)
Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption
SLAACIPsec VPN Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication)
Encryption: 3DES, AES (128-bit, 192-bit, 256-bit)
Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512VLANs 802.1Q VLAN tags per device/per interface: 4,094/4,094
Aggregate interfaces (802.3ad), LACPNetwork Address Translation NAT modes (IPv4): static IP, dynamic IP, dynamic IP and port (port address translation)
NAT64, NPTv6
Additional NAT features: dynamic IP reservation, tunable dynamic IP and port oversubscriptionHigh Availability Modes: active/active, active/passive
Failure detection: path monitoring, interface monitoringZero Touch Provisioning (ZTP) Available with -ZTP SKUs (PA-850-ZTP)
Requires Panorama 9.1.3 or higher
