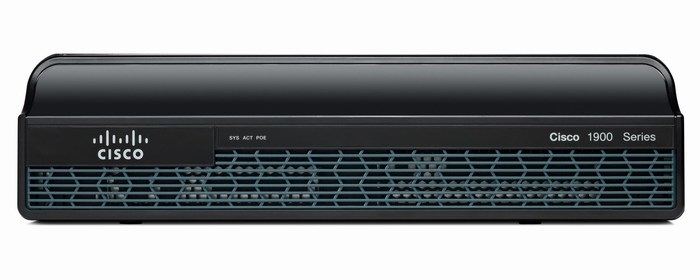

Integrated Services Router CISCO1941/K9

Mô tả

Integrated Services Router CISCO1941/K9

– 2 integrated 10/100/1000 Ethernet ports: GE0/0&GE0/1

– 2 enhanced High-Speed WAN Interface Card slots that can host 2 single wide or 1 double wide and 1 single wide (e)HWIC

– 1 Internal Services Module slot

– Support fully integrated power distribution to modules supporting 802.3af Power over Ethernet (PoE) and Cisco Enhanced PoE

– Highly secure collaborative communications with Group Encrypted Transport VPN, Dynamic Multipoint VPN, or Enhanced Easy VPN

– Integrated threat control using Cisco IOS Firewall, Cisco IOS Zone-Based Firewall, Cisco IOS IPS, and Cisco IOS Content Filtering

Đặc tính kỹ thuật

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	CISCO1941 / K9
Product Type	Router
Form Factor	External – modular – 2U
DRAM Memory	512 MB (installed) / 2 GB (max)
Flash Memory	256 MB (installed) / 8 GB (max)
Routing Protocol	OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol	IPSec
Remote Management Protocol	SNMP, RMON
Features	Cisco IOS IP Base , firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED)
Compliant Standards	IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag
Power	AC 120/230 V ( 50/60 Hz
Dimensions (WxDxH)	34.3 x 29.2 x 8.9 cm
Weight	5.8 kg
