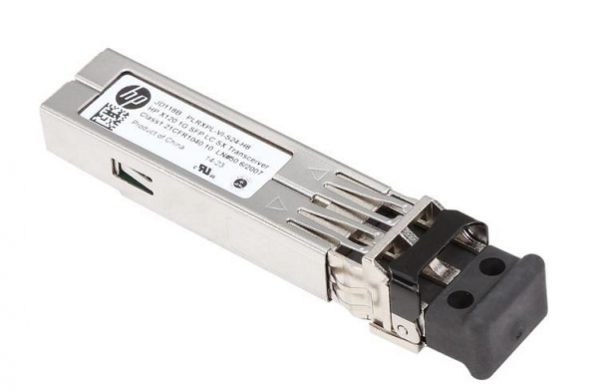

HP X120 1G SFP LC SX Transceiver JD118B

Mô tả

HP X120 1G SFP LC SX Transceiver JD118B

A small form-factor pluggable (SFP) Gigabit SX transceiver that provides a full-duplex Gigabit solution up to 550m on a Multimode fiber.

Features

– Delivers reliable Gigabit Ethernet connections for 1000Base-SX compliant networks.

– 100% HP compatible SFP, equivalent to HP JD118B.

– Meets or exceeds OEM specifications and MSA (Multi-Source Agreement) industry standards.

– Supports Digital Diagnostics Monitoring (DDM).

– 850 nm optical wavelength.

– Supports multimode (maximum distance 550 m).

– LC fiber connector.

– Maximum data rates up to 1.25Gbps.

– Hot-pluggable.

Specifications

Model	JD118B
Ports	1 LC 1000BASE-SX port
Connector type	LC
Wavelength	850 nm
Dimensions	5.51 x 1.52 x 1.17 cm
Weight	0.02kg
Transceiver form factor	SFP
Fiber type	Multi Mode
Cable length	550m
Max Data Transfer Rate	1.25 Gbps
Power Consumption	0.8 W
Storage Temperature Range	-40 to 85ºC
Operating relative humidity	5 to 95% RH, Non-Condensing
Operating Temperature	0 to 70ºC
