Mô tả

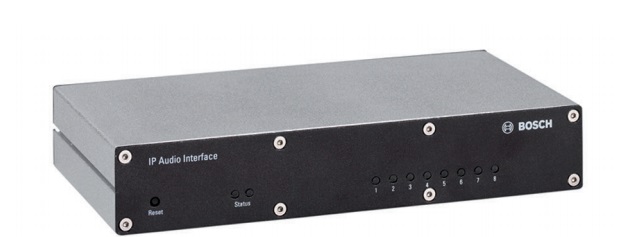

Giao diện tín hiệu audio định địa chỉ BOSCH PRS-1AIP1
– Giải pháp tất cả trong một cho việc truyền âm thanh trên mạng IP.
– Các tín hiệu điều khiển ngõ vào và ngõ ra có sự giám sát.
– Độ trễ âm thanh có thể cấu hình trên ngõ ra để điều chỉnh theo loa.
– Dễ dàng lắp đặt và cấu hình thông qua trình duyệt web chuẩn.
– Giải pháp IP tuân theo EN 60849.
– Ngõ vào microphone, Line, 8 ngõ vào điều khiển.
– Định dạng âm thanh: MPEG 1-layer 3 (MP3), MPEG 1-layer 2, G.711, PCM.
– Tiêu chuẩn Ethernet: 802.3i / 802.3u.
– Hỗ trợ kết nối Ethernet: RJ45, RS232.
– Tốc độ Ethernet: 10/ 100 Mbps.
– Hỗ trợ song công, bán song công.
– Giao thức: TCP/IP, UDP, RTP, IGMP, DHCP, SNMP.
– Nguồn điện ngoài: 18-56VDC.
– Công suất tiêu thụ: 8W.
– Kích thước: 216 x 38 x 125 mm.
– Trọng lượng: 0.7 kg.
Đặc tính kỹ thuật
External power supply 1 | 18 to 56 VDC |
External power supply 2 | 18 to 56 VDC |
Power consumption | 8 W max |
Microphone input | |
Sensitivity | -48.5 to -26 dBV |
Impedance | 1360 Ω |
Frequency response | 100 Hz to 15 KHz |
S/N | >60 dB |
Supervision detection | Electret: 0.4 – 5 mA |
Dynamic: 120 – 1300Ω | |
Line Inputs | |
Sensitivity | -16.5 to +6 dBV |
Impedance | 22 KΩ |
Frequency response | 20 Hz to 15 KHz |
S/N | >70 dB |
Pilot tone detection level (input 2 only) | -30 dBV |
Line outputs | |
Level | 6 dBV max |
Pilot tone level (output 2 only) | 20 dBV (20 KHz) |
Audio formats | |
MPEG 1-layer 3 (MP3) | 32, 44.1 and 48 KHz sample rate |
Encoding up to 192 kbps VBR | |
Decoding up to 320 kbps (stereo) | |
MPEG 1-layer 2 | 16, 22.05 and 24 KHz sample rate |
G.711 | uLaw, aLaw at 8, 24 or 32 KHz sample rate |
PCM | 16‑bit at 8, 24 or 32 KHz sample rate |
Control inputs | 8 x |
Connectors | Removable screw terminals |
Operation | Closing contact (with supervision) |
Control / fault outputs | 8 x/ 1 x |
Connectors | Removable screw terminals |
Operation | Make contact (SPST, voltage free) |
Rating | 24 V, 0.5 A |
Ethernet | |
Connector | Dual RJ45, DTE-pinout |
Standard | 802.3i / 802.3u |
Speed | 10 / 100 Mbps, auto-negotiation |
Flow | Full / half-duplex, autonegotiation |
Protocol | TCP/IP, UDP, RTP, IGMP, DHCP, SNMP |
RS232 | |
Connector | 9‑pin Sub‑D male, DTE‑pinout |
Pinout | 300 to 115.200 Baud |
Setting (default) | 9600, 8, N, 1 |
Mechanical | |
Air pressure | 600 to 1100 hPa |
Mounting | Stand‑alone or in 19 inch rack with additional frame |
Color | Silver with Charcoal |
Dimensions | 216 x 38 x 125 mm |
Weight | 0.7 kg |
– Sản xuất tại Trung Quốc.
– Bảo hành: 12 tháng.
