Fast Connector SC/UPC

Mô tả

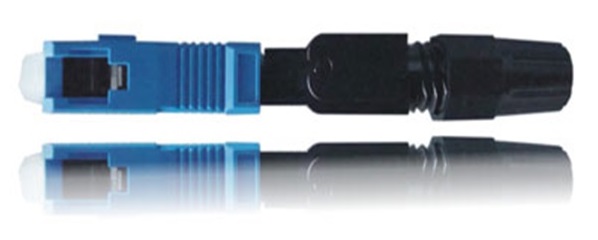

Fast Connector SC/UPC

– Part number: SC/UPC-H01

– Đầu nối nhanh Fast Connector SC/UPC là sản phầm dùng để thi công đấu nối cáp quang thuê bao đệm chặt tại đầu cuối khách hàng với thời gian thi công chỉ 03 phút, suy hao tiếp xúc chỉ với 0.25dB.

– Thi công nhanh gọn, không cần mài sợi, không cần nhiều dụng cụ.

– Dễ dàng thi công trong thời gian không đầy 3 phút.

– Hỗ trợ tái sử dụng đến 05 lần.

– Độ bền cao, có thể hoạt động liên tục trong 25 năm.

– Suy hao tiếp xúc thấp (Ave. 0.25dB) and high Return Loss.

– We are instrumental in providing to our valuable customers excellent quality SC/UPC.

– FTTH Fiber Optic Fast Connector (Quick Connector) which is available with following

– Factory price, one year warranty, can be reused.

– Accurate mechanical dimension: 55 x 8.9 x 7mm.

– Suitable for 3mm drop cable and 3x2mm flat cable.

– Using simple tools without electrical power, no special tools needed to install.

– Easy and fast installation, 30 seconds to learn install, 90 seconds to operate in the field.

– No need of polishing or adhesive, ceramic ferrule with embedded fiber stub is pre-polished.

– Fiber aligned in v-groove through the ceramic ferrule.

– Low-volatile reliable matching liquid preserved by side cover.

– Unique bell-shaped boot maintains the minimum fiber bend radius.

– TIA/EIA-568-B, 455, IEC61754-4, RoHS, Telcordia R-326-Core compliant.

– Xuất xứ Trung Quốc.
