Compact Audio Interface Unit TOA IP-1000AF ( hàng dự án )

Mô tả

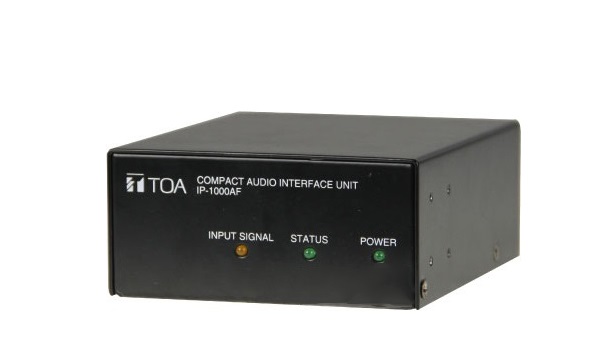

Compact Audio Interface Unit TOA IP-1000AF

– Can be mounted to different surfaces.

– Able to act as both input and output units in the network system.

– The device can also receive messages from server and other devices for initiating broadcast.

– Support using browser to change the device setting.

Specifications

Model	IP-1000AF
Power Source	DC 24V
Current Consumption	Below 85mA
Audio Input	1V rms (Max: 2V rms), unbalanced 10KΩ
Audio Output	1V rms, unbalanced 600Ω
Frequency Response	LINE IN (Sampling Frequency: 22k): 20Hz -10kHz LINE OUT (MP3/Sampling Frequency: 44k): 40Hz -15kHz
Control Contact Input	Open circuit voltage: 24V DC; short circuit current: ≤5mA
Relay Normally Closed Contact (NC) Common Contact (COM) Normally Open Contact (NO)	Withstand voltage ≤30V DC, control current ≤500mA Withstand voltage ≤30V DC, control current ≤500mA Withstand voltage ≤30V DC, control current ≤500mA
Network I/F	10 BASE-T/100 BASE-TX, auto negotiation
Network Protocol	UDP, ARP, ICMP, IGMP
Operation Temperature	0°C to +40°C
Operation Humidity	Less than 90% RH (no condensation)
Dimension (W) x (H) x (D)	91 x42 x106 mm
Accessory	5P terminal blocks x 1, 4P terminal blocks x1, Plastic foot (10mmx3mm) x4

– Sản xuất tại Trung Quốc.

– Bảo hành: 12 tháng.
