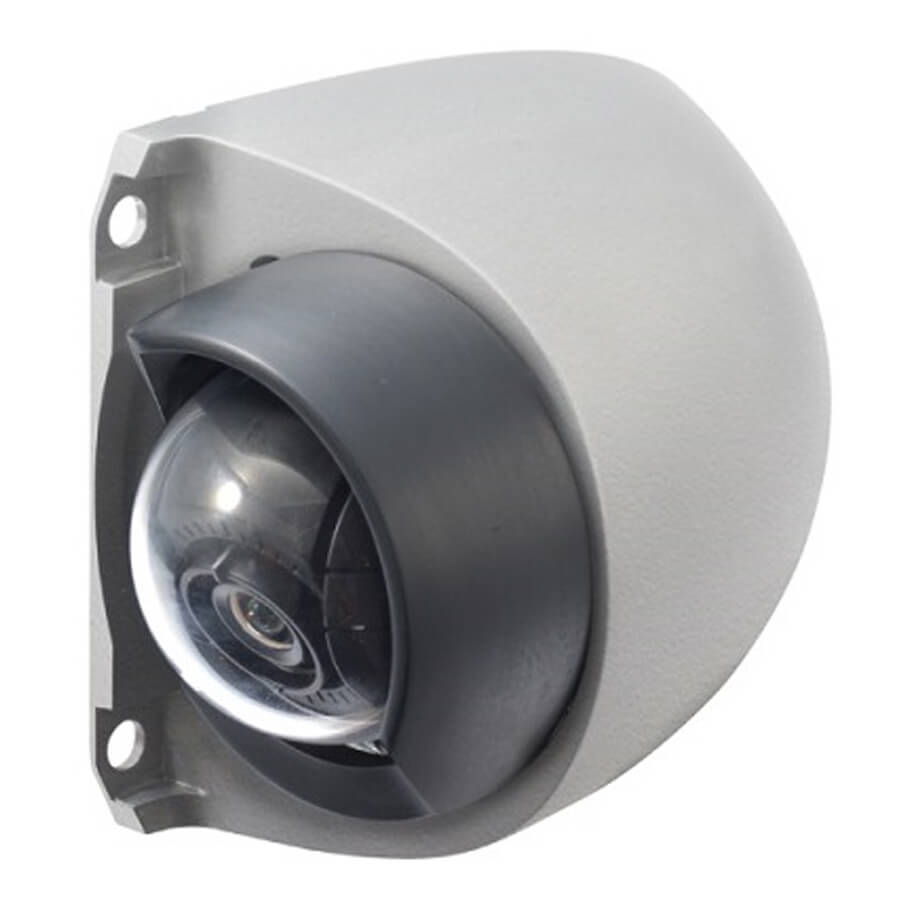

Camera IP I-PRO WV-SBV131M
Mô tả
Thông số kỹ thuật
| Model | WV-SBV131M |
| Camera | |
| Image Sensor | 1/3 type CMOS image sensor |
| Scanning Mode | Progressive |
| Scanning Area | 5.28 mm (H) x 3.30 mm (V) {7/32 inches (H) x 1/8 inches (V)} |
| Minimum Illumination | – Color: 0.1 lx (F2.2, Maximum shutter: Off (1/30s), AGC: High) 0.007 lx (F2.2, Maximum shutter: Max. 16/30s, AGC: High) – BW: 0.06 lx (F2.2, Maximum shutter: Off (1/30s), AGC: High) 0.004 lx (F2.2, Maximum shutter: Max. 16/30s, AGC: High) |
| White Balance | AWC (2,000 – 10,000 K), ATW1 (2,700 – 6,000 K), ATW2 (2,000 – 6,000 K) |
| Light Control Mode | ELC/ Indoor scene 50Hz/ Indoor scene 60Hz |
| Wide dynamic range | On/ Off |
| Adaptive Black Stretch | On/ Off (only when Wide dynamic range: Off) |
| Fog compensation | On/ Off (only when Wide dynamic range: Off) |
| High light compensation (HLC) | On/ Off (only when Wide dynamic range/ Back light compensation (BLC): Off) |
| AGC | On (High)/ On (Mid)/ On (Low)/ Off |
| Maximum shutter | max. 1/10,000s, max. 1/4,000s, max. 1/2,000s, max. 1/1,000s, max. 1/500s, max. 1/250s, max. 1/120s, max. 1/100s, max. 2/120s, max. 2/100s, max. 3/120s, max. 3/100s, max. 1/30s, max. 2/30s, max. 4/30s, max. 6/30s, max. 10/30s, max. 16/30s |
| Day/Night (Electrical) | Off / Auto |
| Digital Noise Reduction | High/ Low |
| Video Motion Detection | On/ Off, 4 areas available |
| Privacy Zone | On/ Off (up to 8 zones available) |
| VIQS | On/ Off (Max. 8 locations) |
| CameraTitle (OSD) | Up to 20 characters (alphanumeric characters, marks), On/ Off |
| Focus Adjustment | MANUAL |
| Lens | |
| Focal Length | 1.95 mm {1/16 inches} |
| Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 |
| Zoom ratio | x1 Extra zoom x3 (16 : 9 mode) / x2.5 (4 : 3 mode) |
| Angular Field of View | [16 : 9 mode] Horizontal: 109° Vertical: 73° [4 : 3 mode] Horizontal: 97° Vertical: 79° |
| F Numbe | F2.2 |
| Focus Distance | 0.5 m – ∞ |
| Adjusting Angle | |
| Adjusting Angle | Horizontal: ±170°, Vertical: ±90° Image tilt adjustment range: -170° (Left) to +170° (Right) |
| Browser GUI | |
| Camera Control | Brightness |
| Display Mode | Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available. |
| Camera Title | Up to 20 alphanumeric characters |
| Clock Display | Time: 12H/24H Date: 5 formats on the browser Summer time (Manual) |
| One Shot Capture | A still picture will be displayed on a newly opened window |
| SD Memory Data Download | Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded. |
| GUI/Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Chinese, Russian, Japanese |
| System Log | Up to 100 (Internal), Up to 4,000 (SDXC/SDHC/SD memory when the recording format is set to JPEG.) error logs |
| Supported OS | Microsoft® Windows® 10, Microsoft® Windows® 8.1, Microsoft® Windows® 8, Microsoft® Windows® 7 |
| Supported Browser | Windows® Internet Explorer® 11 (32 bit) Windows® Internet Explorer® 10 (32 bit) Windows® Internet Explorer® 9 (32 bit) Windows® Internet Explorer® 8 (32 bit) |
| Network | |
| Network IF | 10Base-T/ 100Base-TX, M12 connector (female) |
| Image Resolution | – 2 Megapixel [16 : 9] H.264 (1)(2)/ JPEG (1)(2)(3) 1,920 x 1,080/ 1,280 x 720/ 640 x 360/ 320 x 180/ 160 x 90 H.264 (3)(4) 1,280 x 720/ 640 x 360/ 320 x 180/ 160 x 90 – 2 Megapixel [4 : 3] H.264 (1)(2)/ JPEG (1)(2)(3) 1,600 x 1,200/ 1,280 x 960/ 800 x 600/ VGA/ 400 x 300/ QVGA/ 160 x 120 H.264 (3)(4) 1,280 x 960/ 800 x 600/ VGA/ 400 x 300/ QVGA/ 160 x 120 – 3 Megapixel [4 : 3] * Used by super resolution techniques H.264 (1)(2)/ JPEG (1)(2)(3) 2,048 x 1,536/ 1,280 x 960/ 800 x 600/ VGA/ 400 x 300/ QVGA/ 160 x 120 H.264 (3)(4) 1,280 x 960/ 800 x 600/ VGA/ 400 x 300/ QVGA/ 160 x 120 |
| H.264 | – Transmission Mode: Constant bit rate/ Variable bit rate/ Framerate priority/ Best effort/ Advanced VBR – Frame Rate: 1/ 3/ 5/ 7.5/ 10/ 12/ 15/ 20/ 30 fps – Bit Rate/Client: 64/ 128/ 256/ 384/ 512/ 768/ 1,024/ 1,536/ 2,048/ 3,072/ 4,096/ 6144*/ 8,192*/ 10,240*/ 12,288*/ 14,336*/ 16,384*/ 20,480*/ 24,576*/ 30,720*/ 40,960 kbps* * The available range of the H.264 bit rate varies depending on the setting selected for “image capture size” – Image Quality: Low/ Normal/ Fine 0 SUPER FINE/1 FINE /2 / 3 / 4 / 5 NORMAL / 6 / 7 / 8 / 9LOW – Smart Coding mode: On (Low / Mid / High) / Off (Only when ‘Variable bit rate’ is selected) – Transmission Type: Unicast/ Multicast |
| JPEG | – Image Quality: 10 steps – Refresh Interval: 0.1 fps – 30 fps – Transmission Type: Pull / Push |
| Total Bit Rate | 64/ 128/ 256/ 384/ 512/ 768/ 1,024/ 2,048/ 4,096/ 8,192 kbps/ Unlimited |
| Supported Protocol | – IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP – IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP |
| FTP Client | Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SDXC/SDHC/SD memory card is available.) |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card(Option) | Manufactured by Panasonic (except miniSD card and microSD card) SDXC memory card: 64 GB, 128 GB SDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB SD memory card: 256 MB, 512 MB, 1 GB, 2 GB |
| Cellular Phone Compatibility | JPEG image |
| Mobile Terminal Compatibility | iPad, iPhone, iPod touch(iOS 4.2.1 or later), Android mobile terminals |
| Alarm | |
| Alarm Source | VMD, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, Indication on browser, FTP image transfer, Panasonic protocol output |
| Alarm Log | With SDXC/SDHC/SD memory card: 5,000 logs, without SDXC/SDHC/SD memory card: 1,000 logs |
| Schedule | VMD |
| General | |
| Safety/EMC Standard | UL (UL60950-1), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1 FCC Part15 ClassA, ICES003 ClassA, EN55022 ClassB, EN55024 |
| Power Source and Power Consumption | PoE (IEEE802.3af compliant)/ PoE (Alternative A): 48 VDC: 80 mA/ Approx.3.8 W (Class 2 device) |
| Ambient Operating Temperature | -40 °C to +60 °C {-40 °F to 140 °F} (Power On range: -30 °C to +60 °C {-22 °F to 140 °F}) |
| Ambient Operating Humidity | 10 % to 90 % (no condensation) |
| Impact Protection | Compliant with IK10 (IEC 62262) |
| Water and Dust Resistance | IP66 (IEC60529), IP6K9K, Type 4X (UL50), NEMA 4X compliant |
| Railway Application | EN50155-T3, EN50121, ECE-R10, EN45545, EN50498 |
| Dimensions | 100 mm {3-15/16 inches} (W), 80 mm {3-5/32 inches} (H), 161 mm {6-11/32 inches} (D) |
| Mass (approx.) | Approx. 750 g {1.65 lbs} |
| Finish | Main body: Aluminum die cast, Light gray Dome cover: Polycarbonate resin, Clear (with hard coating) |
| Others | Tamper-resistant dome cover |
