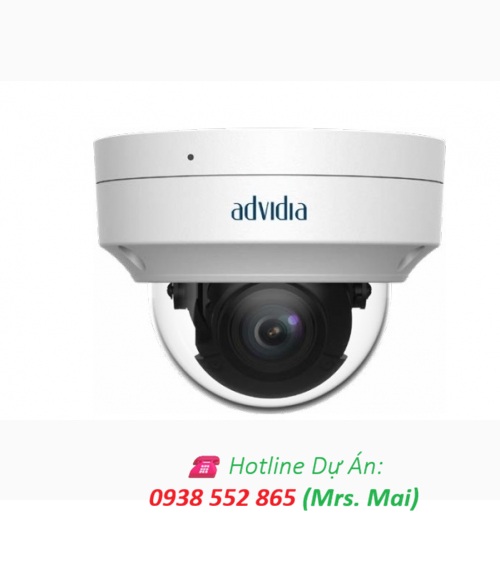

Camera IP ADVIDIA M-46-FW-V2

Mô tả

Thông số kỹ thuật

Device
Image Sensor	1/2.7 inch, 5.0 Megapixel, Progressive Scan, CMOS
Min Illumination	Color: 0.003Lux (F1.6, AGC ON) \| 0Lux with IR on
Shutter Time	Auto/Manual, 1 ~ 1/100000s
Lens	2.8mm@F1.6, Fixed-Focal
WDR	120dB
Angle of View	H: 112.9° \| V: 59.1° \| O: 121.2°
Angle Adjustment	Pan: 8° to 360° \| Tilt: 0° to 68° \| Rotate: 10° to 360°
3-Axis Adjustment	Yes
Day & Night	IR-Cut Filter with Auto Switch (ICR)
IR Range	Up to 30m (98ft) IR range
Compression Standard
Video Compression	Ultra 265, H.265, H.264, MJPEG
Video Bit Rate	128 Kbps~16 Mbps
Dual Streams	Yes
Analytics	Cross line, Intrusion, Human Body Detection, Motion Detection, Tampering Alarm, Audio Detection
Max. Image Resolution	2688 x 1520
Frame Rate	25fps (2688 x 1520)
ROI Codec	Up to 8 Areas
Image Setting	White Balance, Image Setting, Digital Noise Reduction, Smart IR, Flip, HLC, BLC, Defog
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
Interface
Communication Interface	1 x RJ45 10M/100M Base-TX Ethernet
Local Storage	Micro SD, up to 256GB
Audio	Built-in Mic
General
Safety	CE: EN 60950-1 UL: UL60950-1 IEC 60950-1
EMC	FCC: FCC Part 15
Operating Conditions	Temperature: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (Non-Condensing)
Power Consumption	Max 4.5W
Power Supply	DC 12V±25%, PoE (IEEE 802.3af)
Weather Proof Rating	IP67
Vandal Resistant	IK10
Dimensions	Φ109 x 83mm
Weight	0.36kg
