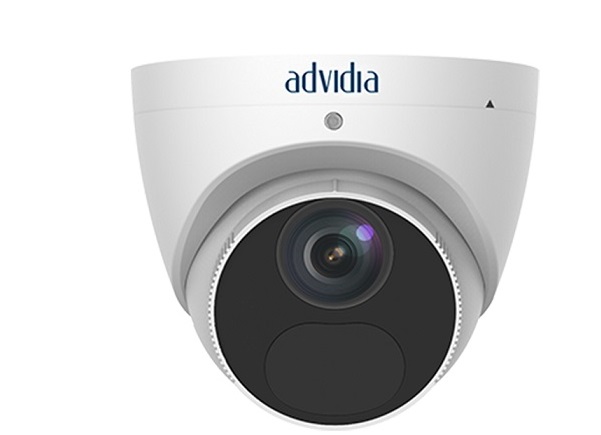

Camera IP ADVIDIA M-24-FW-T

Mô tả

Thông số kỹ thuật

Device
Image Sensor	1/2.8 inch Progressive Scan CMOS
Min Illumination	Color: 0.01Lux (F2.0, AGC ON) \| 0Lux with IR
Shutter Time	Auto/Manual, 1 ~ 1/100000s
Lens	2.8mm@F2.0
WDR	52dB
Angle of View	H: 106.7°, V: 57.1°, O: 115.7°
Angle Adjustment	Pan: 0° ~ 360° \| Tilt: 0° ~ 80° \| Rotate: 0° ~ 360°
3-Axis Adjustment	Yes
Day & Night	IR-Cut Filter with Auto Switch (ICR)
IR Range	Up to 30m (98ft) IR range
Compression Standard
Video Compression	H.265, H.264
Video Bit Rate	128 Kbps ~ 6 Mbps
Two Stream	Yes
Analytics	Motion Detection
Max. Image Resolution	1920 x 1080
Frame Rate	30fps (1920 x 1080)
ROI Codec	Up to 8 areas
Image Setting	White Balance, Digital Noise Reduction, Smart IR, Flip, HLC, BLC
Network
Protocols	IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP
Interface
Communication Interface	10M/100M Base-TX Ethernet
General
Safety	CE, IEC62368-1
EMC	FCC Part 15, EN 55032:2015+A11:2020, EN 55035: 2017+A11:2020
Operating Conditions	Temperature: -30°C~60°C(-22°F~140°F), Humidity:≤95%RH(Non-Condensing)
Power Consumption	Max 5.0W
Power Supply	DC 12V±25%, PoE (IEEE 802.3af)
Weather Proof Rating	IP67
Dimensions	Φ111 x 95mm
Net Weight	0.29kg
