AV500 Nano PowerLine Adapter Kit EDIMAX HP-5103K

Mô tả

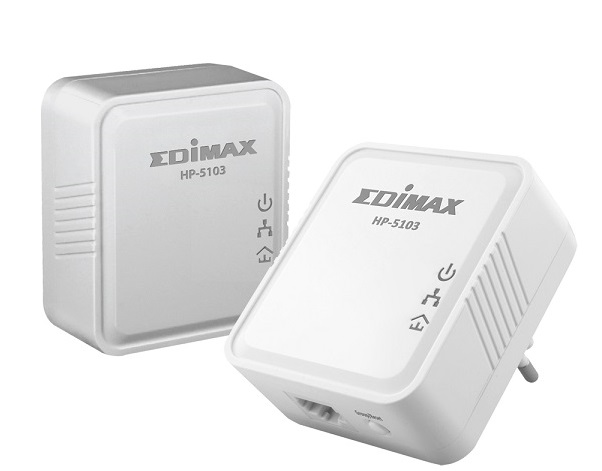

AV500 Nano PowerLine Adapter Kit EDIMAX HP-5103K

– 500Mbps Powerline Adapter with 2-port 10/100M Ethernet.

– Easy plug-n-play setup and 128 bit AES security.

– Maximum Powerline speed up to 500Mbps.

– Backward compatible with 200Mbps Powerline adapters.

– Features energy saving mode to reduce power consumption.

– Utilizes existing electrical wires to transmit network data.

– Powerline transmission range up to 300 meters.

Specifications

Hardware	1 x AC plug (EU, UK, US, or AU) 1 x 10/100Mbps Ethernet LAN port 1 x Group/Reset button LED indicators: power, Ethernet, Powerline
Standards	IEEE 1901 IEEE 802.3 IEEE 802.3u
Effect Data Rate	TCP: Up to 95 Mbps effective throughput UDP: Up to 95 Mbps effective throughput Powerline: 500Mbps (PHY rate)
Frequency Band	2-68MHz (with Mask)
Modulation Schemes	OFDM symbol modulation on line synchronization 1024/256/64/16/8-QAM, QPSK, BPSK, ROBO modulation
Operating Range	Up to 300 meters
QoS	4 levels priority based contention access, and multi segment bursting 8 levels VLAN priority field, TOS field QoS classification by destination MAC address and IP port
Nodes	Up to 15 slaves with 1 master, 16 total devices Max 8 bridged devices per station
IGMP	Support for IPv4/IGMPv1,v2,v3 snooping Support for IPv6 and MLDv1, v2 snooping Max 16 source addresses and group members
IC / Memory	AR7420+1540 1MB Flash 8MB SDRAM
Security	128-bit AES link encryption with key management
Temperature & Humidity	0-45 degrees Celsius 10-90% (non-condensing)
Dimensions & Weight	Dimensions: 68 x 60 x 28mm Weight: 84g
