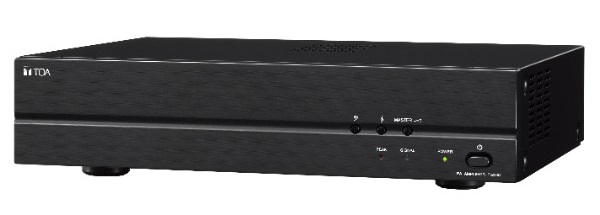

Amply công suất ClassD 480W TOA P-3248D AS

Mô tả

Amply công suất ClassD 480W TOA P-3248D AS

– P-3248D AS is a high performance yet cost-effective digital booster amplifier equipped suited for broadcasting, paging, or background music in schools, offices, shops, houses of worship and large ballrooms.

– High durability, high reliability and high cost performance.

– Two balanced parallel inputs, one speaker line input.

– Speaker output of constant voltage distribution system (100V) and low impedance (4Ω).

– Operate on both AC and DC Power.

– Semi fixed master volume control and independent speaker line input volume control.

– Semi fixed and independent tone control of boost and cut type for both high and low frequencies.

– Remote power control by make contact input.

– Power Source: 100 – 240VAC, 50/60Hz or 24VDC.

– Rated Output: 480W.

– Power Consumption: 99 W (AC operation at 1/8 maximum output without clip).

– Frequency Response: 50 – 20,000 Hz.

– Input: Line In: 0 dB, 10 kΩ, balanced, screw terminal.

– 100 V Line In: 40 dB, 30 kΩ, unbalanced, screw terminal.

– Output: Speaker out: Speaker Output in screw type terminal.

– Direct line (selectable): 21 Ω (100 V) or 4 Ω.

– Rec out: 0 dB, 600 Ω, unbalanced, screw terminal.

– Control: Remote power control, screw terminal.

– Remote master volume bypass, screw terminal.

– S/N Ratio: Over 70 dB.

– Total Harmonic Distortion: Under 1% at 1 kHz, 1/3 rated power.

– Tone Control: Bass: ±10 dB at 100 Hz.

– Treble: ±10 dB at 10 kHz

– Indicator: Power, Signal, Peak.

– Ventilation: Fan Cooling.

– Panel: ABS resin, black.

– Case: Steel plate, black.

– Dimensions: 420 × 100.9 × 351.3mm.

– Weight: 5.2kg.

– Xuất xứ Indonesia.

– Bảo hành: 12 tháng.
