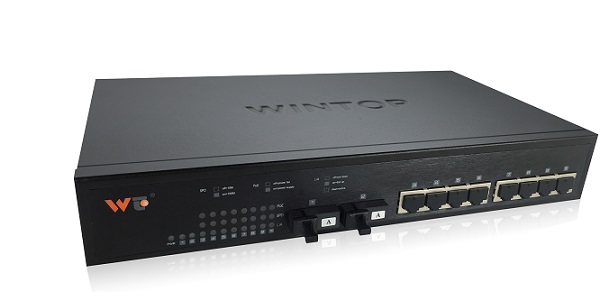

8-port 10/100Base-T(X)+2-port 1000Base-F(X) Switch WINTOP YT-DS1010-1GF8T
Mô tả
8-port 10/100Base-T(X)+2-port 1000Base-F(X) Switch WINTOP YT-DS1010-1GF8T
– YT-DS1010-1GF8T is a plug-and-play power-over-Ethernet switch that supports up to 2 Gigabit optical ports and 8 100M electrical ports. It adopts a fanless, low power consumption, industrial level 4 design and has an IP30 protection level. It has an operating temperature of -20 ~ 60℃, has a strong ruggedness, can adapt to harsh outdoor environments, and has high EMI/EMC protection capabilities. Each product has passed 100% aging test to ensure quality. The product has been widely used in Ethernet communication systems that require simple network structure.
– Provides 8×10/100Base-T(X) ports and 2×1000Base-F(X) optical ports.
– Fanless design, IP30 protection grade, impact-resistant metal shell.
– Applicable voltage range 100~240V AC.
– EMC industrial level 4 electromagnetic compatibility requirements (lightning protection, static electricity, surge, group pulse).
– Full port 6KV lightning protection,
– Applicable to -20 ℃～60 ℃ working environment.
Đặc tính kỹ thuật
| Model | YT-DS1010-1GF8T |
| Interface | Optical port: 1000Mbps (Interface type: SC/ST/FC or SFP slot) Network port: 10/100Mbps self-adaptive, Full/Half duplex mode, support MDI/MDI-X. Transmission distance 0-100m. LED indicator: PWR, Link/ACT, SPD |
| Switch properties | Backplane bandwidth: 5.6Gbps MAC address table: 8K Message cache size: 1Mbits Super frame rate: 10KB Packet forwarding rate: 4.17Mpps |
| Power requirements | Input voltage: 100~240V AC Input current: Max 100mA |
| Physical properties | Housing: metal, IP30 protection Size: 290mm x 165mm x 45mm Weight: 1200g Installation method: desktop/wall-mounted |
| Working environment | Operating temperature: -20 ~ 60°C (-4 ~ 140°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Relative humidity: 5 ~ 95% (non-condensing) |
| Industry standards and Certification | Electromagnetic interference (EMI): FCC Part 15/CISPR22 (EN55022): Class A Electromagnetic sensitivity (EMS): IEC61000-4-2 (ESD) level 4, IEC 61000-4-3 (RS) level 3, IEC 61000-4-4 (EFT) level 4, IEC61000-4-5 (Surge) level 4, IEC 61000- 4-6 (CS) Level 3 Vibration resistance: IEC60068-2-6 Shock resistance: IEC60068-2-27 Free fall: IEC60068-2-32 MTBF (mean time between failures) Time: 500000h |
– Xuất xứ: Trung Quốc.
– Bảo hành: 12 tháng.
