4U Rackmount Chassis for Video Converter BT-4U-D48

Mô tả

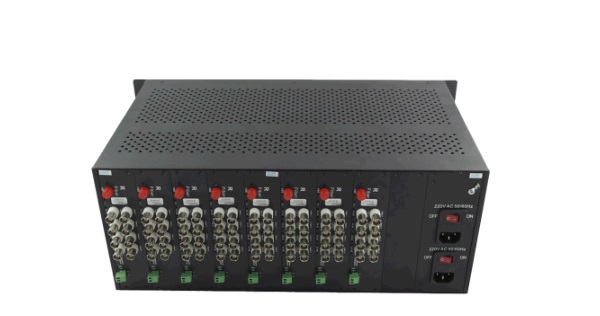

4U Rackmount Chassis for Video Converter BT-4U-D48

– 18 slot, Dual Power DC48V, for converter card.

Features

– Main and vice power equipment ensure system work smoothly.

– Function cards supports hot-plugging and each card realizes its corresponding function independently.

– Double power panel slot supports two power supply units backup for each other.

– It would enhance the reliability of the rack.

– Supports 220V/110V AC switch mode power supply (SMPS) design.

– Power supply and other parameter state indicator LED can monitor the operation condition of system.

– With stable performance, large capacity of power supply, and easy for management and maintenance.

– All of the modules installed in the chassis are hot-swap, which makes it unnecessary to power-down the chassis when replacing modules.

– Support telecommunication operation requirement completely.

Technology Specification

– Structure: 4U Rack.

– Ripple wave: ≤20mv.

– Power input: AC85~265V 50/60HZ or 48V.

– Power output: DC5V.

– Power adapter: dual power supply.

– Power: 95W.

– Operating Temperature: -10~55℃.

– Operating Humidity: 5%~95% .

– Storage Temperature: -40~70℃.

– Storage Humidity: 5%~95% no condensing.

– Dimension: 430mm x 260mm x 180mm for 4U Rack.
