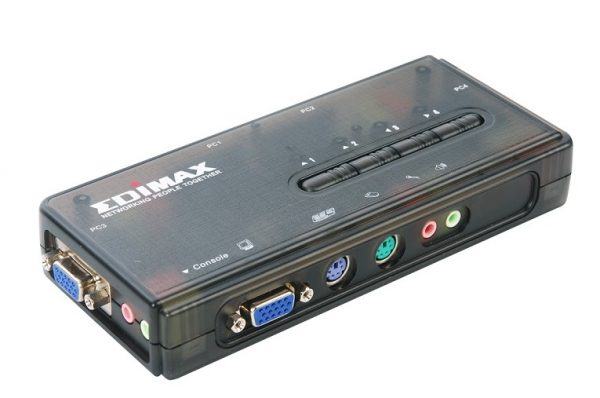

350MHz High Bandwidth 4 Ports PS/2 KVM Switch EDIMAX EK-PAK4

Mô tả

350MHz High Bandwidth 4 Ports PS/2 KVM Switch EDIMAX EK-PAK4

– PS/2 4 Ports KVM Switch with 4 Cables and Audio/Mic Support.

– Supports High Video Resolution up to 2048 x 1536.

– Supports up to 350MHz Bandwidth.

– Supports PS/2 Keyboard and Mouse.

– Supports Audio and Microphone Switching.

– Supports Auto Scan (Programmable).

– Supports Hotkey and Push Button to Switch among PCs.

– Includes KVM Cables to save your cost.

Features And Technical Specifications

Max PC Connections	4
PC Side Connection	4 x HDB 15-pin female (integrated with PS/2)
Console Side Connection	1 x PS/2 Keyboard (6-pin Mini Din female) 1 x PS/2 Mouse (6 pin Mini Din female) 1 x HDB-15 VGA female
PC Selection	Hot Keys / Push Buttons
PC Ports LED	4
Connection Cables	4 x detachable slim PS/2 KVM Combo Cable
Scan Intervals	5, 10~99′ (with an increment of 10”)
Max. Resolution	2048 x1536
Max. Bandwidth	350MHz
Operation information	Temperature : 0~50 °C / Humidity : 0~90%, Non-Condensing
Weight (g)	185g
Dimension	164 x 72 x 26mm
