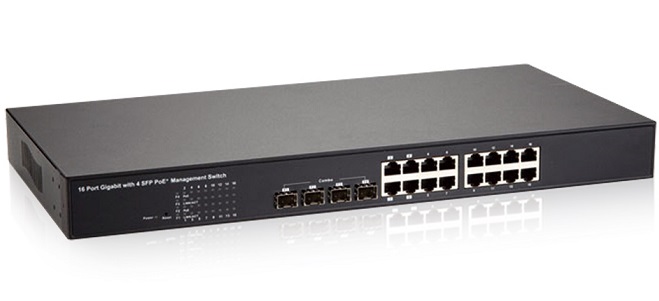

16-Port Gigabit PoE+ with 4 SFP Slots Web Smart Switch EDIMAX ES-5816PHG

Mô tả

16-Port Gigabit PoE+ with 4 SFP Slots Web Smart Switch EDIMAX ES-5816PHG

– Complies with IEEE 802.3, 802.3af, 802.3u, 802.3x, 802.ap, 802.1q, 802.3at standards

– Supplies 48VDC with 30W output per port (130W max.)

– Power consumption budget UI to monitor power usage

– Port-based remote power on/off to restart connected PoE devices individually

– Supports IGMP snooping to optimize network performance

– Supports 16 port-based VLAN and 20 tag-based VLAN groups

– Supports 2 trunking groups (4 ports per group and up to 2 groups for each device)

Đặc tính kỹ thuật

Standards	IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.ab 1000BaseT IEEE 802.3z 1000BaseSX/LX IEEE 802.3x Flow Control IEEE 802.3af PoE IEEE 802.3at PoE IEEE 802.1x Port-based Network Access Control IEEE 802.1Q VLAN IEEE 802.3ad Link Aggregation IEEE 802.1d Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1p Class of Service, Priority Protocols
Features	RJ-45 Gigabit Ports: 16 SFP Open Slots: 4 MAC Address: 8K Buffer Memory: 500K Bytes Jumbo Frames: 9.6K Transmission Method: Store and Forward
Smart Features	VLAN: 32 Tagged VLAN: 32 VLAN ID: 1~ 4094 Trunk Groups: 8 Quality of Service: up to 4 queues IGMP Snooping LACP, RSTP MAC Filtering Rate Limiting (Ingress rate and Egress rate) 802.1x Port-based Network Access Control Management: Port Mirroring, Password-protected Access, Port Settings, Web-base Management, Graphic User Interface
Transmission Media	10BaseT Cat. 3, 4, 5 UTP/STP 100BaseTX Cat. 5 UTP/STP 1000BaseT Cat. 5E UTP/STP
Led Indicators	Per Port: Link/Act, PoE: Act/Status Per Unit: Power
Power Requirement	100~240VAC, 50~60Hz
Power Consumption	130 Watts (Max)
Dimensions	440 × 330 × 44mm(L x W x H)
Weight	4.3kg
Operating Temperature	0 to 40℃
Storage Temperature	-20 to 90℃
Humidity	10 to 90% RH (non-condensing)
