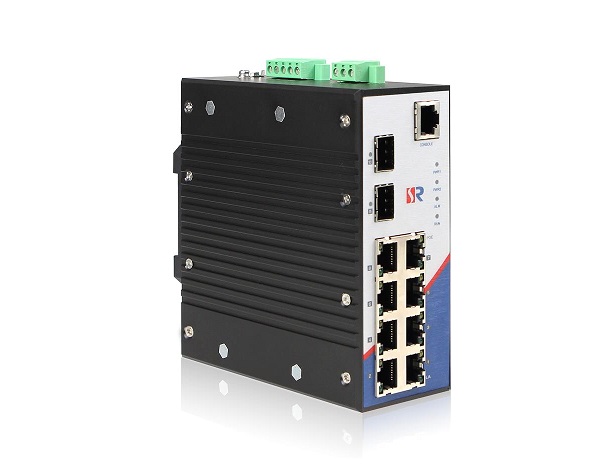

10-port Industrial DIN-Rail Switch WINTOP YT-RS6010-2GF8T

Mô tả

10-port Industrial DIN-Rail Switch WINTOP YT-RS6010-2GF8T

– Support 8-port 10/100Baes-T(X)+2-port 1000Base-X (SFP slots).

– Serial port: RS-232 (Interface type: RJ45 slot).

– Gigabit optical port: 1000Mbps (Interface type: SFP slot).

– 100M electrical port: 10/100Mbps adaptive, Full/Half duplex mode, support MDI/MDI-X.

– LED indicator: PWR1, PWR2, ALM, Link/Act, SPD, RUN.

– Support standard: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseT, IEEE 802.3z 1000BaseFX, IEEE 802.3x flow control, IEEE 802.1d-2004 STP protocol, IEEE 802.1w RSTP protocol, IEEE 802.1s MSTP protocol, IEEE 802.1p Cos, IEEE 802.1q VLAN.

– Protocol: IGMP Snooping, SNMPv1/v2c/v3, TFTP, SNTP, RMON, HTTP, HTTPS, SSH, Telnet, Syslog, LLDP, LACP, DHCP Client, EtherNet/IP, Modbus/TCP.

– Qos queue: 4.

– VLAN range: 1-4094.

– Backplane bandwidth: 5.6Gbps.

– Message buffer size: 3Mb.

– MAC address table: 8K.

– Input voltage: support two redundant backup, AC 110~240V DC 9~60V.

– Input current: AC maximum 0.1A, DC maximum 1A.

– Dimension: 135 x 130 x 55 mm.

– Weight: 850g.

– Xuất xứ: Trung Quốc.

– Bảo hành: 12 tháng.
